Product Description
Features:
. 37 Sample positions.
. 28 Reagent positions.
. 48 Reaction cuvettes.
. 200 Tests per hour.
. Probe anti-collision function,liquid level dectection function.

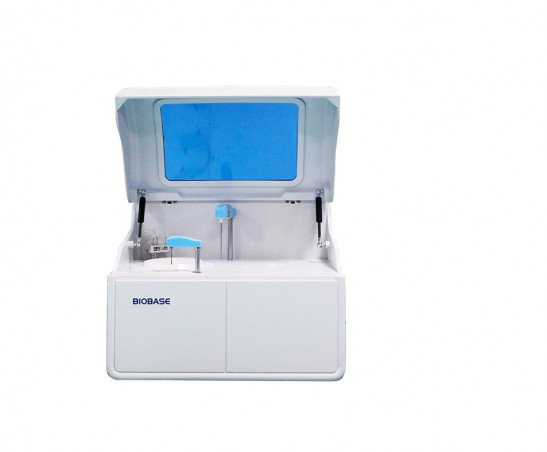

Overall appearance
One probe for reagents and sample;One mixer;Washing probe.
Reaction tray
37ºC±0.1ºC, real-time monitor.
Reagent Tray
Refrigerated tray with independent switch.
Mixer Probe
Sample needle
Liquid level sensor function. Anti-collision function.Reagent volume real-time detection.
Washing Probe
Independent 2-step washing system.
LAN Port Access
Detailed Photos
Product Parameters
|
Model |
BK-200mini( NEW BK-200) |
|
|
Overall |
Throughput |
200 Tests/hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic) |
|
|
Certificates |
CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample & Reagent System |
Sample Positions |
37 sample positions |
|
Reagent Position |
28 reagent positions |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
37+0.1ºC, real-time monitoring |
|
Cuvettes |
48 reusable cuvettes,optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
6V/10W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340,405,450,510,546,578,630,700nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration & QC |
Calibration |
Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D) |
|
|
Data Management |
Software |
Windows 7/8/10 , 32or 64bit |
|
LIS System |
Bi-direction,support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
|
Printer |
External,multiple reporting mode available |
|
Working Conditions |
Power Supply |
AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W |
|
Temperature |
10~30ºC |
|
|
Water Consumption |
Deionized water:<5L/H |
|
|
Humidity |
30-80% |
|
|
Size & Weight |
External Size (W*D*H) |
625*425*460mm |
|
Net Weight |
36kg |
|
|
Package Size (W*D*H) |
721*531*855mm |
|
|
Gross Weight |
55kg |
|
Certifications
Basic Info.
Model NO.
BK-200
Analysis Method
End-Point, Fixed-Time, Rate(Kinetic)
Sample Positions
37 Sample Positions
Reagent Position
28 Reagent Positions
Probe Washing
Automatic Washing Interior and Exterior
Reagent Cooling
Refrigerated Tray with Independent Switch
Cuvettes
48 Reusable Cuvettes,Optical Length 6mm
Mixer Probe
Independent Stirring
Washing
Automatic Cuvettes Washing
Light Source
6V/10W Halogen Lamp
Spectrophotometry
Post-Spectral Spectrophotometry
Wavelength
340,405,450,510,546,578,630,700nm
Absorbance
0~3.0ABS
Gross Weight
55kg
Transport Package
Wooden
Specification
721*531*855mm
Trademark
BIOBASE
Origin
Shandong, China
Production Capacity
100units/Month
