Model

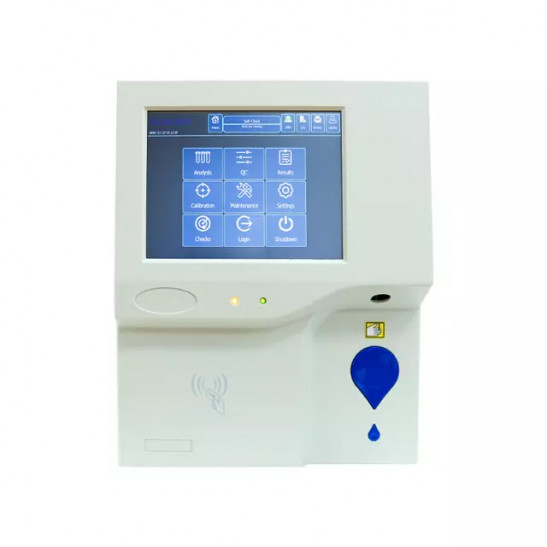

BK-5000

Throughput

60 tests/hour

Measuring Principle

Coulter principle  Colorimetry hemoglobin determination

Parameters

WBC, LY#, MID#, GR#, LY%, MID%, GR%, RBC, HGB,

HCT,MCV, MCH, MCHC, RDW-SD,

RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC

Histograms

3 Histograms (including WBC, RBC, PLT)

Sampler Volume

Predilute 20μl  Whole blood 10μl

Display

8” color touch screen display

Intelligent reagent management function

Reagent information and residual display

Carryover

WBC≤1.5%  RBC, HGB<1.0% , PLT≤2%

Printer

External printer

Input and output

1 RS232 , keyboard , Mouse, 4USB, LAN

Performance

Parameter

Linearity range

Precision (CV%)

WBC(10⁹/L)

0.0-100.0

2.0 (4.0-10.0)

RBC(10¹²/L)

0.00-9.99

1.5 (3.50-5.50)

HGB(g/L)

0-300

1.0 (110-160)

PLT(10⁹/L)

0-1000

5.0 (100-300)

Option

Barcode scanner, LIS

Operating Environment

Temperature 10-35 ^oC   Humidity≤90%

Power Supply

AC110/220V±10%, 60/50 Hz

Package Size(W*D*H)

666*555*600mm

Gross Weight

25KG

Reagent Package Size(W*D*H)

380*275*255mm
